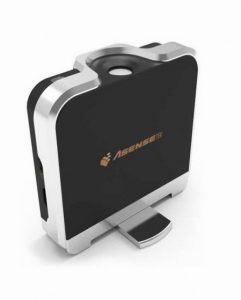

Lighting Passport Pro Standard
- LEAD TIME 8 TO 10 WEEKS
- Handheld, Lightweight, and Portable
- Measures over 90 parameters (CCT, CRI, Illuminance, Spectrum)
- Compatible with iOS and Android devices
- Uses Bluetooth technology to allow remote measurement sharing
Professional Mobile Phone Light Spectrometer & Flickermeter
The Lighting Passport Pro Standard, a smart spectrometer for Apple and Android – now with even more features in the Pro version.
On the move you analyze quickly and precisely lightings with your smartphone or tablet – it is simple to connect your smart device via Bluetooth to the sensor of Lighting Passport Pro Standard and you can start to measure.
The Lighting Passport Pro Standard is a two in one device with a flicker- and a spectrometer.
Use over 20 different photometric parameters such as flicker, CCT, CRI, spectrum, illuminance and much more.
After a measurement is done, you get your presentation of measurement results immediately and well-ordered
in your smartphone or tablet display in color graphics or tables.
Advantages of a mobile light spectrometer:
- A combination of flicker- and photopectrometer
- Extremly light (76.5g) and portable (68.5 x 17 x 56)
- About 24 different parameters are available
- Temperature and humidity sensor
- Easy to use: “Just slide with your finger”
- After a measurement you receive your results immediatley which can be sent via E-Mail or WiFi
- App Spectrum Genius Mobile in AppStore/Play Store available for free
Technical data of spectrometer flickermeter & Lighting Passport Pro Standard:
| Wavelength Range | 380-780nm |
| Illuminance Range | 50 – 50.000 lux |
| Measurable | 5 – 50.000 lux |
| Optical Resolution (FWHM) | 8nm |
| Output Wavelength Pitch | 1nm |
| Integration Time | 6ms – 16s |
| Language |
|
| Measurement Mode |
|
| Messbare Parameter |
|
| Key Features |
|
| Accuracy (@ 1.000 lux Standard Light Source) | |
| x,y | ± 0,002 |
| Illuminance | ± 3% |
| CCT | ± 2% |
| Repeatability | x,y: < 0.0005* |
| Flicker messurement | ± 5% |
| Flicker range | 5-200Hz |
| Weight | 79g |
| Dimension (LxBxH) | 68,5 x 17 x 56 mm, |
| * In Precision Mode (@ 1.000 lux Standard Light Source) | |
Equipment for Lighting Passport Pro Standard:
- Soft case for secure storage and transportation
- A stand for seperate use of sensor and your smart device
- Battery charger
- Retainer for the sensor on a smart device
- Parts / fixing screws
- Fanny Pack
- PC Software Spectrum Genius
