Lighting Navigator
- NIST Traceable
- Handheld, Lightweight and Portable
- Measures CCT, CRI, Illuminance, Spectrum
- Allows you to comply with Lighting Standards from around the world

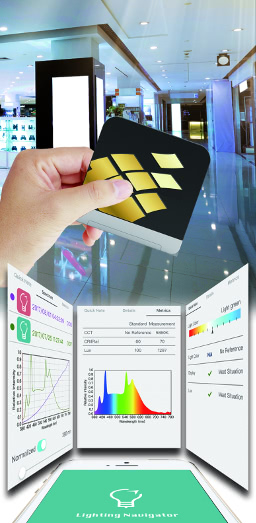

Color temperature measurement with Lighting Navigator
The simplest solution for successful light projects
The Light Navigator from the well-known manufacturer Asensetek is more than just a luxmeter. Besides the color temperature measuring, also the color rendering index CRI/Ra can be determined and the light spectrum can be displayed.
Thus the Light Navigator is the perfect device for all those, who just want to check the technical data of a lamp or a light, or measure their consisting light installation rapidly.
Additionally different standards are deposited for the individual countries. That way it’s possible to check if your present installation meets with the standards, with little research only.
The meter works as an independent sensor, just like the other Lighting Passport devices from Asensetek and is coupled via bluetooth with your smartphone or any other smart device (iOS or Android). Download the app, connect via bluetooth and you’re ready to go.

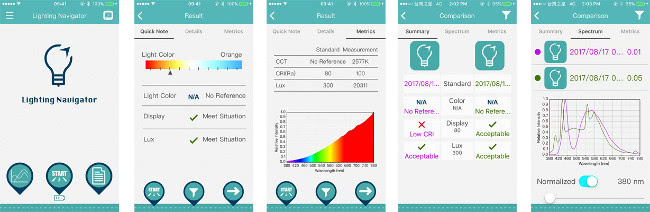

Measuring the color temperature and counting with the app of Lighting Navigator
| Main Features | Filter Measurement Comparison |
| Measurement Capability | CCT CRI (Ra) Illuminance Spectrum R9 Rank IEC-SDCM Rank (MacAdams) |
| Other Features | Photograph, Note, Auto Connection, Standard Estimation, GPS Orientation, Social Media Integration |
| Language | English, Traditional Chinese, Simplified Chinese |
| AppStore |  |
| Google Play |  |
Technical data of the Asensetek Lighting Navigator:
| Size | Width: 63.1 mm Depth: 17.5 mm Height: 63.1 mm |
| Net weight | 92 g ± 1 g (with stand) |
| Wavelength range | 380 ~ 780 nm |
| Illuminance range Measurable | 50 ~ 50,000 lux |
| Optical resolution (FWHM) | 10 nm |
| Accuracy (@ 1,000 lux Standard Light Source) |
CCT:± 3.5 % Illuminance:± 5 % |
| Integration time | 6 ms ~ 16 s |
| Operating temperature/ humidity range |
0 ~ 35 °C, relative humidity under 80 % with no condensation |
| Storage temperature/
humidity range
|
-10 ~ 45 °C, relative humidity of 85 % or less (@ 35 °C) with no condensation |
